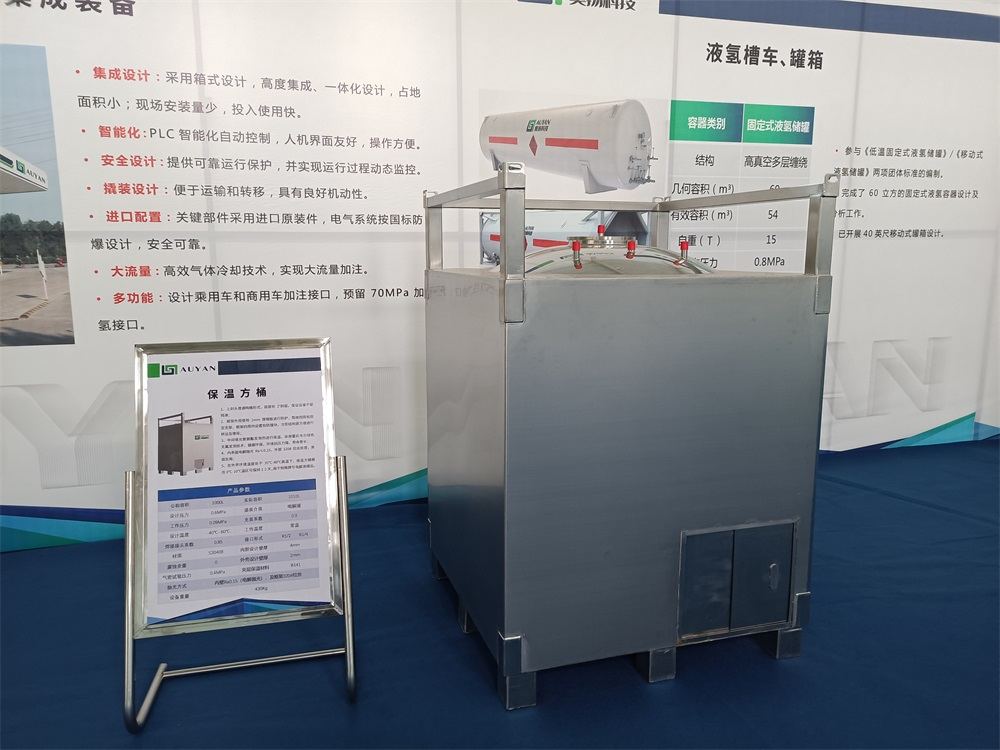

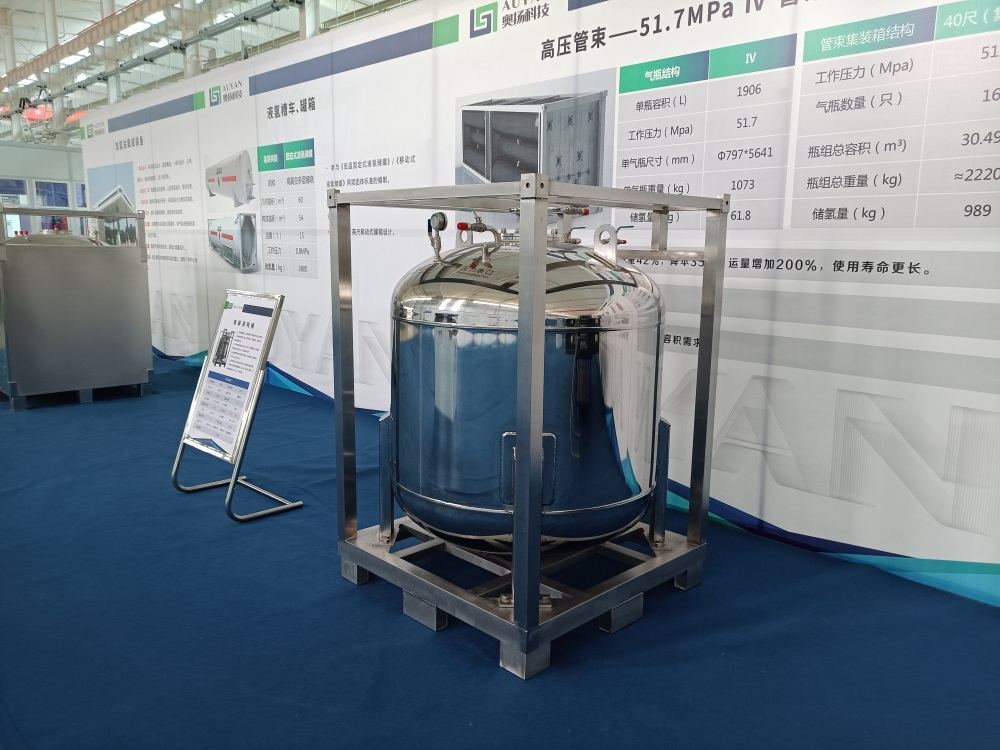

Chemical Storage Transportation Electrolyte Tank Container of Li Ion Batteries

1. The electrolyte tank is clean and dry, and the inside and outside   are clean and free of oily impurities;

2. The take-off pressure of the safety valve is 0.4±0.02MPa, and the gasket is EPDM;

INTRODUCTION

Auyan Electrolyte Tank Product Features:


1. The general electrolyte tank type of the industry can also be professionally designed and produced according to the special requirements of customers;

2. The structure of the electrolyte tank is simple and reasonable, the airtightness is good, the durability is strong, the use is safe, and the filling and cleaning are convenient;

3. Suitable for storage and transportation of lithium batteries, electrolytes, and high-purity chemicals;

4. The whole barrel is made of high-quality 304 stainless steel plate, which is corrosion-resistant;

5. Using argon arc welding technology and plasma welding technology, single-sided welding, and double-sided forming, the working pressure can reach 0.6MPa (otherwise can be customized according to customer needs);

6. It is sealed by standard flange connection and PTFE gasket;

7. Mechanical mirror polishing Ra≤0.4 (or 8K mirror surface) on the outer surface of the tank, electropolishing Ra≤0.4 on the inner surface, bright inside and outside, not easy to rust, and avoid polluting the purity of the electrolyte;


Chemical Storage Transportation Electrolyte Tank Container of Li Ion Batteries Chemical Storage Transportation Electrolyte Tank Container of Li Ion Batteries
TECHNICAL DATA
1000L technical  characteristics table
ItemParameter
Design pressure0.6MPa
Set temperature60°C
Maximum working pressure0.0098MPa
Maximum operating temperaturenormal temperature°C
Stock density1.09×103Kg/m³
Full volume1.01m³
Corrosion allowance0mm
Filling factor0.90%
Main materialS30408
Filled water weight1220Kg
Equipment net weight210Kg(without frame)
Nozzle and supportby drawing
Paint, Packaging and ShippingJB/T4711-2003
Note1. The container is clean and dry, and the inside and outside   are clean and free of oily impurities;
2. The take-off pressure of the safety valve is 0.4±0.02MPa, and the gasket is EPDM;


APPLICATION

Suitable for storage and transportation of lithium batteries, electrolytes, and high-purity chemicals.
