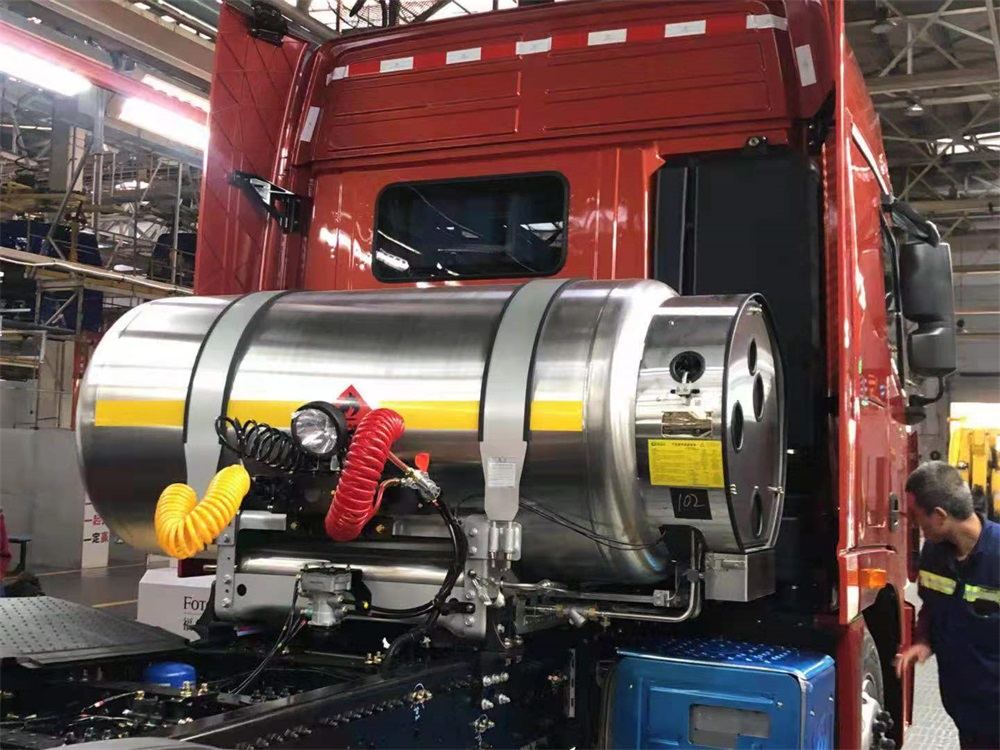

Horizontal Liquid Nitrogen Storage Tank Cryogenic LNG Vessel Cylinders

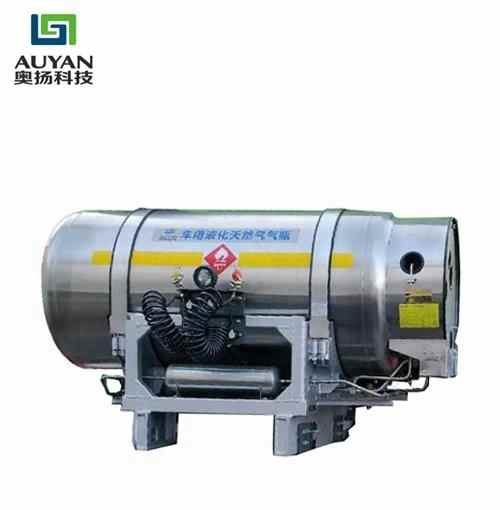

Liquefied Natural Gas (LNG) cylinder, is a high-quality and reliable solution for the storage and transportation of LNG. AUYAN cylinder has been designed with safety and efficiency in mind and has been extensively tested to ensure that it meets the highest standards of performance and durability.


INTRODUCTION

Liquefied Natural Gas (LNG) cylinder, is a high-quality and reliable solution for the storage and transportation of LNG. AUYAN cylinder has been designed with safety and efficiency in mind and has been extensively tested to ensure that it meets the highest standards of performance and durability.

The LNG cylinder is constructed using advanced materials that provide exceptional strength and resistance to corrosion and wear. The cylinder is equipped with a state-of-the-art valve system that ensures precise control over the flow of LNG and provides excellent leak protection. The cylinder is also equipped with safety features such as pressure relief valves, safety burst discs, and a pressure gauge, to ensure that it can be used safely and with confidence.

Advantages of LNG Gas Cylinder

1. Long-term heat preservation: high vacuum degree, low exhaust frequency, two years vacuum guarantee, better than competitors.

2. High Safety: There is no leakage while using. It is not dangerous when being baked in the fire for 40 mins, dropping down from 10 m height, hit by 100 km/h. The gas cylinder frame fit the special installation requirements of the LNG automobiles and adapt to any complex conditions.

3. High stability: The gas cylinder output pressure in the gas supply system and matching degree of the valves is more stable.


Horizontal Liquid Nitrogen Storage Tank Cryogenic LNG Vessel Cylinders Horizontal Liquid Nitrogen Storage Tank Cryogenic LNG Vessel Cylinders
TECHNICAL DATA
LNG  Gas Cylinder for Vehicle
V(l)500L500L-I750L850L 995L995L-I
OD(mm)φ658 φ708φ858φ858φ858φ908
L(mm)210218331902210623292168
NW(Kg)265-275265-275400-403440-443490-493490-493
Max Filling Weight(Kg)190190250282330330
Weight With LNG(Kg)455--465455-465650-653 722-725820-823820-823
Continuation of   Journey(Km)485-530485-530710-780800-880940-1000 940-1000
System AssemblyWeight(Kg)≈720≈732≈918≈987≈1082≈1082
NotesHigh capacity LNG gas cylinder can   meet the limited weight requirements for heavy truck



APPLICATION

Applicable models of LNG cylinder,

Main engine factory: The range of applied vehicles is tractor, bus, dump truck, flatbed truck, etc.; the volume of gas cylinders is 350L-530L, all of which are small; Side mount.

Modification plant: The application range is relatively wide, mainly tractors and mining trucks, which have formed batches; other dump trucks, high-speed tractors, mobile power generation equipment, marine use, etc. are all involved, which are verified by tests;
